Single-Boom Hydraulic Mining Drilling Jumbo
Product Description

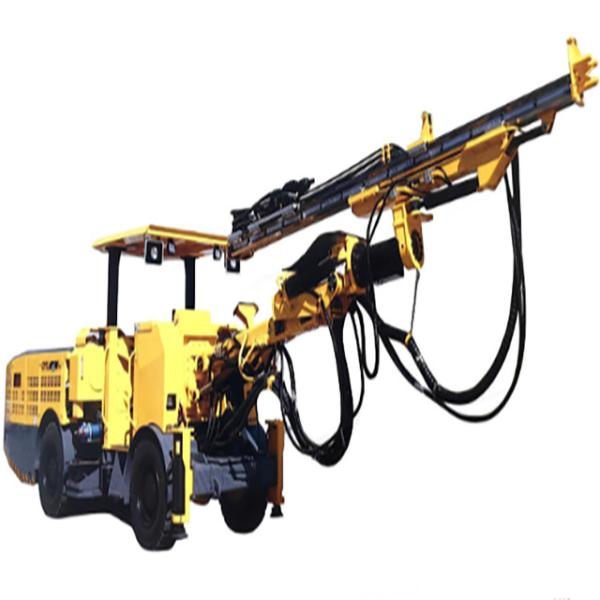

The Single-Boom CYTJ45 mining hydraulic drilling jumbo is a highly versatile double-boom hydraulic drilling rig. It offers precise control with low operation and proportional control capabilities, making it suitable for various rock drilling applications. This drilling jumbo provides a range of configuration options to meet diverse operational requirements. With its contemporary design, it incorporates an information visualization system that enhances safety and ergonomics. The machine's compact structure and excellent mobility contribute to an improved working environment, boosting construction efficiency and ensuring high-quality results.
Technical Parameter
| |
| Cross section | 4000×4000-6100×6100mm |
| Overall dimension | 12000×1850×2280mm |
| Ground clearance | 300mm |
| Total weight | 13500Kg |
| Horizontal hole | full coverage |
| Feed compensation stroke | 1250mm |
| Boom pitching angle | +53° -30° |
| Boom swing angle | ±35° |
| Carrier turning radius | 3500mm 5480mm |
| Engine power | 73.6kW |
| Total installed power | 65.5kW/85.5kW5.5k |
| Main motors power | 55 kW/75kW |
| Voltage(customized) | 380V |
| Rock Drill (optional) | YYG18U |
| Shank adaptor | T38 |
| Rock Drill length | 1007mm |
| Impact power | 18kW |
| Frequency | 57Hz |
| Impact pressure | 180-200bar |
| Rotary system | Separate rotation |
| Overall length of thruster | 5450 / 6040 mm |
| Rod length | 3700 / 4305 mm |
| Drilling depth | 3370 / 3970 mm |
Our Company & Service
Glorytek Industry (Beijing) Co., Ltd. is a reputable manufacturer and exporter of high-quality drilling equipment and parts. With over 20 years of experience, we have established ourselves as a trusted name in the industry. Our success stems from the support of our skilled R&D team and engineers who ensure the successful completion of projects according to clients' specifications.
Spanning an area of 250,000 square meters, our state-of-the-art factory is equipped with advanced machinery, including CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of machinery and a workforce of more than 600 employees, we have the capacity to meet the demands of our customers.
Our products have gained recognition in over 60 countries, including Australia, Russia, South Africa, Malaysia, France, and the USA. We take pride in our global presence and the trust placed in us by customers worldwide.
Certificate
Customer Visit
Exhibition
FAQ
Q: How do we select an appropriate water well drilling rig?
A: We typically recommend a suitable model based on factors such as drilling depth, hole diameter, and site conditions.
Q: Is your company a manufacturer or a trading company?
A: We are an integrated corporation specializing in manufacturing and exporting.
Q: What are your accepted payment terms?
A: We accept T/T and L/C as payment methods.
Q: What is your minimum order quantity (MOQ), and what is the delivery time?
A: Our MOQ is 1 set. Usually, the delivery time for drill rigs is around 25-30 days after receiving payment, while drilling tools take about 15 days.
Q: What is the warranty period?
A: The mainframe is covered by a one-year warranty (excluding quick-wear parts).
Q: Can we have our logo printed on the products?
A: Yes, we support OEM and can accommodate your logo printing requirements.
.
