Big Hole Diameter Water Well Drill Rig 300m Deep Water Well Drilling Rig
Discover the high-performance 300m Deep Water Well Drilling Rig by Glorytek Industry (Beijing) Co., Ltd. This truck-mounted rig is perfect for drilling deep water wells and bore holes. Get yours today!

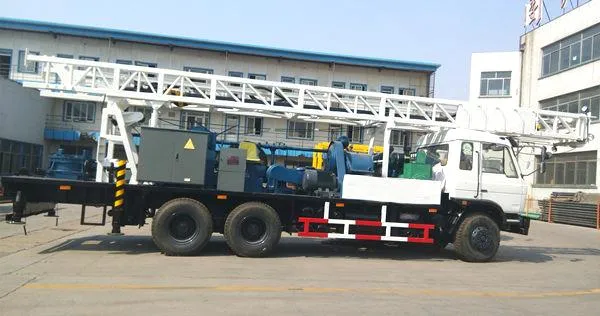

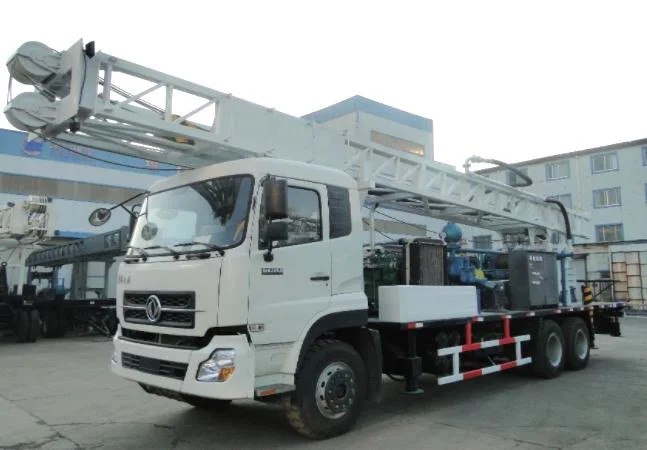

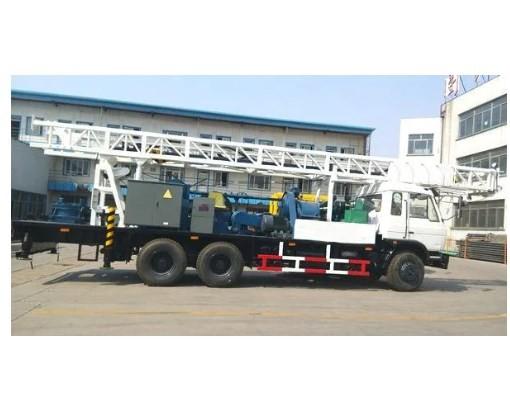

300m Deep Water Well Drilling Rig
The 300m Deep Water Well Drilling Rig is a high-performance rotary drilling rig designed for efficient and reliable water well drilling. With its compact structure and powerful Yuchai YC6J180-33 diesel engine, this rig is capable of drilling deep water wells with ease.
Equipped with a Dongfeng 6×4 special drilling rig chassis, the DFS1251GL18 model ensures excellent off-road performance, thanks to its 11.00R20 steel wire cross-country pattern tires. This rig is built to handle tough terrains and challenging drilling conditions.
When drilling, the rig utilizes an independent diesel generator set as its power source. This allows the mechanical hoist and turntable to work simultaneously, ensuring efficient and smooth drilling operations.
Whether you need to drill water wells for residential, commercial, or agricultural purposes, the 300m Deep Water Well Drilling Rig from Glorytek Industry (Beijing) Co., Ltd. is the perfect solution. With its advanced features and reliable performance, this rig is a valuable asset for any drilling project.
Technical Parameter
| Nominal drilling depth (M) | 300 |
| Through hole diameter of turntable (mm) | 500 |
| Turntable speed (r/min) | 8.6-142 |
| Turntable torque (kN.m) | 38.9-2.4 |
| Single rope pulling force of main winch (kN) | 30 |
| Main hook lifting capacity (kN) | 240 |
| Single rope pulling force of auxiliary winch (kN) | 30 |
| Lifting force of secondary hook (kN) | 120 |
| Drill tower bearing capacity (kN) | 240 |
| Effective height of drilling tower (mm) | 11900 |
| Kelly rod (mm) | Φ108×108×7500 |
| Drill rod (mm) | Φ88.9×9.8×5500 |
| Power | Generator model | HH100/R6105AZLD-1 100kW |
| Main rig | Y225S-4 37kW/1470rpm |
| Mud pump | Y225S-4 37kW/1470rpm |
| Hydraulic pump | YE2-160M-4 11kW/1470rpm |
| Mud pump | Model | BW850/20 |
| Bore (mm) | 150 |
| Displacement (L/min) | 850, 600 |
| Pump pressure (MPa) | 2, 3 |
| Input power (kW) | 40 |
| Truck chassis | Chassis model | DFS1251GL18 |
| Chassis form | 6×4 |
| Engine | model | YC6J180-33 |
| Type | Water-cooled four-stroke supercharged and inter-cooled |
| Rated power (kW) | 132 |
| Rated speed (rpm) | 2500 |
| Dimension | Working status (mm) | 10500×2480×13700 |
| Transport state (mm) | 12500×2480×3700 |
Company Profile
Company Name: Glorytek Industry (Beijing) Co., Ltd.
Product Name: 300m Deep Water Well Drilling Rig
Keywords: Deep Water Well Drilling, 300m Water Well Drill Rig, Truck-mounted Water Well Drilling, Water Well Drilling Equipment, 400m Truck Mounted Drilling Rig, Rotary Water Well Drill Rig, Water Well Drilling Machine, Truck Water Well Rig 300m, Well Drilling Rig Machine, Water Well Drilling Rig Sale, Drilling Rig for Water Well, 300m Water Well Drilling, Water Well Rig for Sale, Water Drill Rig 300m Deep, Truck-mounted Drilling Equipment, Water Well Drilling Machine Price, Water Well Drilling Rig for Sale, Deep Water Well Rig, 300m Water Well Drilling Machine, Truck-mounted Water Well Rig, Water Well Bore Hole Drill, Drilling Rig for Deep Water Well, 400m Truck-mounted Drilling Rig, Rotary Water Well Drilling

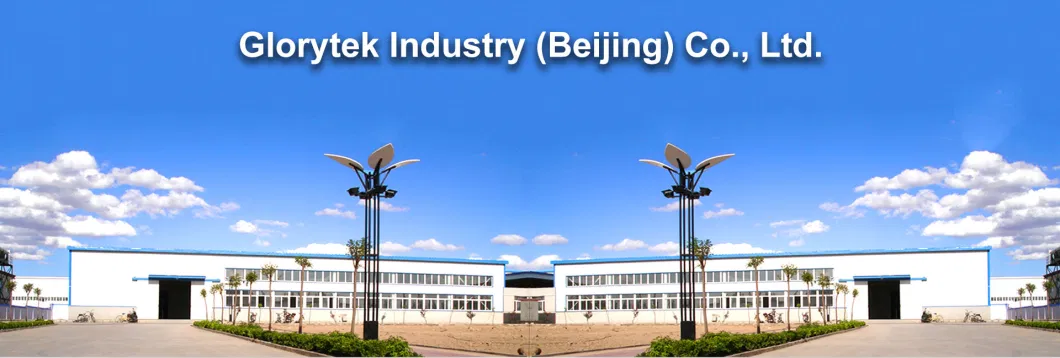

Glorytek Industry (Beijing) Co., Ltd.
For over 20 years, Glorytek Industry (Beijing) Co., Ltd. has been a leading manufacturer and exporter of top-quality drilling equipment and parts. Our highly experienced R&D team and engineers ensure successful project completion according to our clients' requirements.
With a factory spanning 250,000 square meters and a construction area of 150,000 square meters, we have the resources to meet your needs. Our state-of-the-art facilities include over 200 sets of machinery, including CNC processing centers, friction welding machines, and testing equipment. We are proud to have a dedicated team of over 600 employees.
Our products have been exported to more than 60 countries worldwide, including Australia, Russia, South Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, and Haiti.
Product Description: 300m Deep Water Well Drilling Rig
Our 300m Deep Water Well Drilling Rig is a reliable and efficient solution for drilling deep water wells. With its advanced features and robust construction, this rig is designed to meet the demands of various drilling projects.
Key Features:
- Deep Water Well Drilling
- 300m Water Well Drill Rig
- Water Well Bore Hole Rig
- Truck-mounted Water Well Drilling
- Water Well Drilling Equipment
- 400m Truck Mounted Drilling Rig
- Rotary Water Well Drill Rig
- Water Well Drilling Machine
- Truck Water Well Rig 300m
- Well Drilling Rig Machine
- Water Well Drilling Rig Sale
- Drilling Rig for Water Well
- 300m Water Well Drilling
- Water Well Rig for Sale
- Water Drill Rig 300m Deep
- Truck-mounted Drilling Equipment
- Water Well Drilling Machine Price
- Water Well Drilling Rig for Sale
- Deep Water Well Rig
- 300m Water Well Drilling Machine
- Truck-mounted Water Well Rig
- Water Well Bore Hole Drill
- Drilling Rig for Deep Water Well
- 400m Truck-mounted Drilling Rig
- Rotary Water Well Drilling
-
Experience the reliability and efficiency of our 300m Deep Water Well Drilling Rig. Contact us today for more information or to place an order.
